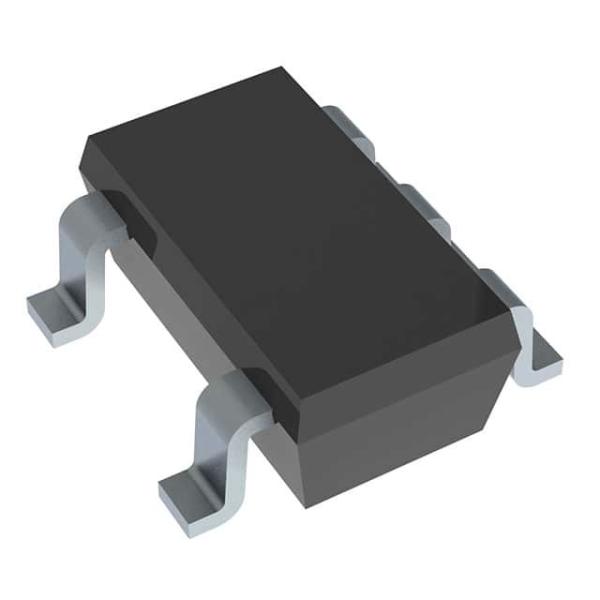

CAT823RTDI-GT3 IC SUPERVISOR 1 CHANNEL TSOT23-5 onsemi

Name: CAT823RTDIGT3 IC SUPERVISOR 1 CHANNEL TSOT235 onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : CAT823RTDI-GT3

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Type : Simple Reset/Power-On Reset

Number of Voltages Monitored : 1

Voltage - Threshold : 2.63V

Output : Push-Pull, Totem Pole

Reset : Active Low

Reset Timeout : 140ms Minimum

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : SOT-23-5 Thin, TSOT-23-5

Supplier Device Package : TSOT-23-5

Contact Now

Product Details

DESCRIPTION

The CAT823, CAT824, and CAT825 provide basic reset and monitoring functions for the electronic systems. Each device monitors the system voltage and maintains a reset output until that voltage reaches the device’s specified trip value and then maintains the reset output active condition until the device’s internal timer, after a minimum timer of 140ms; to allow the systems power supply to stabilize.

FEATURES

Automatically restarts microprocessor after Power failure
Monitors pushbutton for external override
Accurate under voltage system monitoring
Brownout detection system reset for use with 3.0, 3.3, and 5.0 volt systems
Pin and function compatible with the MAX823/24/25 products
Operating Range from -40°C to +85°C
Available in TSOT-23 5-lead and SC-70 packages

APPLICATIONS

Microprocessor and Microcontroller based systems
Intelligent Instruments
Control Systems
Critical µP Monitors
Portable Equipment

Specifications

Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	Supervisors
Series	CAT823
Type	Simple Reset/Power-On Reset
Packaging	Alternate Packaging
Unit-Weight	0.000222 oz
Mounting-Style	SMD/SMT
Package-Case	SOT-23-5 Thin, TSOT-23-5
Operating-Temperature	-40°C ~ 85°C (TA)
Mounting-Type	Surface Mount
Output-Type	Active Low Push-Pull
Supplier-Device-Package	TSOT-23-5
Output	Push-Pull, Totem Pole
Reset	Active Low
Voltage monitoring relays	1
Reset-Timeout	140 ms Minimum
Voltage-Threshold	2.63V
Pd-Power-Dissipation	571 mW
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	4 uA
Battery-Backup-Switching	No Backup
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	1.2 V
Package-Case	TSOT-23-5
Watchdog-Timers	Watchdog
Threshold-Voltage	3 V 3.3 V 5 V
Input Monitoring	1 Input
Manual-Reset	Manual Reset
Overvoltage-Threshold	2.7 V
Undervoltage-Threshold	2.55 V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
CAT823RTDI-GT3 Power Circuits	Power Supply Management Circuit, Fixed, 1 Channel, PDSO5, ROHS COMPLIANT, MO-193, TSOT-23, 5 PIN	Catalyst Semiconductor	CAT823RTDI-GT3 vs CAT823RTDI-GT3
CAT823RTDI-G Power Circuits	1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDSO5, ROHS COMPLIANT AND HALOGEN FREE, MO-193, TSOT-23, 5 PIN	ON Semiconductor	CAT823RTDI-GT3 vs CAT823RTDI-G

Descriptions

Supervisor Push-Pull, Totem Pole 1 Channel TSOT-23-5

Processor Supervisor 2.63V 1 Active Low/Push-Pull 5-Pin TSOT-23 T/R

Supervisory Circuits act low MR/WD
