IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies

Name: IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies
Brand: Infineon Technologies
Price: 1 USD

Brand Name : Infineon Technologies

Model Number : IR3801AMTRPBF

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Down

Output Configuration : Positive

Topology : Buck

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.5V

Voltage - Input (Max) : 21V

Voltage - Output (Min/Fixed) : 0.6V

Voltage - Output (Max) : 12V

Current - Output : 9A

Frequency - Switching : 300kHz

Synchronous Rectifier : Yes

Operating Temperature : -40°C ~ 125°C (TJ)

Mounting Type : Surface Mount

Package / Case : 15-PowerVQFN

Supplier Device Package : PQFN (5x6)

Contact Now

Product Details

DESCRIPTION

The IR3895 SupIRBuckTMis an easy‐to‐use, fully integrated and highly efficient DC/DC regulator. The onboard PWM controller and MOSFETs make IR3895 a space‐efficient solution, providing accurate power delivery.

FEATURES

• Single 5V to 21V application
• Wide Input Voltage Range from 1.0V to 21V with external Vcc
• Output Voltage Range: 0.5V to 0.86×Vin
• Enhanced Line/Load Regulation with Feed‐Forward
• Programmable Switching Frequency up to 1.5MHz
• Internal Digital Soft‐Start/Soft‐Stop
• Enable input with Voltage Monitoring Capability
• Thermally Compensated Current Limit with robust hiccup mode over current protection
• Smart internal LDO to improve light load and full load efficiency
• External Synchronization with Smooth Clocking
• Enhanced Pre‐Bias Start‐Up
• Precision Reference Voltage (0.5V+/‐0.5%) with margining capability
• Vp for Tracking Applications (source/sink capability ±16A)
• Integrated MOSFET drivers and Bootstrap Diode
• Thermal Shut Down
• Programmable Power Good Output with tracking capability
• Monotonic Start‐Up
• Operating temp: ‐40oC < Tj < 125oC
• Small Size: 5mm x 6mm PQFN
• Lead‐free, Halogen‐free and RoHS Compliant

APPLICATIONS

• Netcom Applications
• Embedded Telecom Systems
• Server Applications
• Storage Applications
• Distributed Point of Load Power Architectures

Specifications

Attribute	Attribute Value
Manufacturer	Infineon
Product Category	DC Switching Regulators
Series	SupIRBuck™
Packaging	Alternate Packaging
Package-Case	15-PowerVQFN
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Down
Supplier-Device-Package	PQFN (5x6)
Number-of-Outputs	1 Output
Topology	Buck
Frequency-Switching	300kHz
Current-Output	9A
Output-Configuration	Positive
Output Voltage	0.6V
Voltage-Output-Max	12V
Synchronous-Rectifier	Yes
Voltage-Input-Min	2.5V
Voltage-Input-Max	21V

Descriptions

Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 9A 15-PowerVQFN

Conv DC-DC 2.5V to 21V Step Down Single-Out 0.6V to 12V 9A 14-Pin Power QFN EP T/R

China IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies wholesale

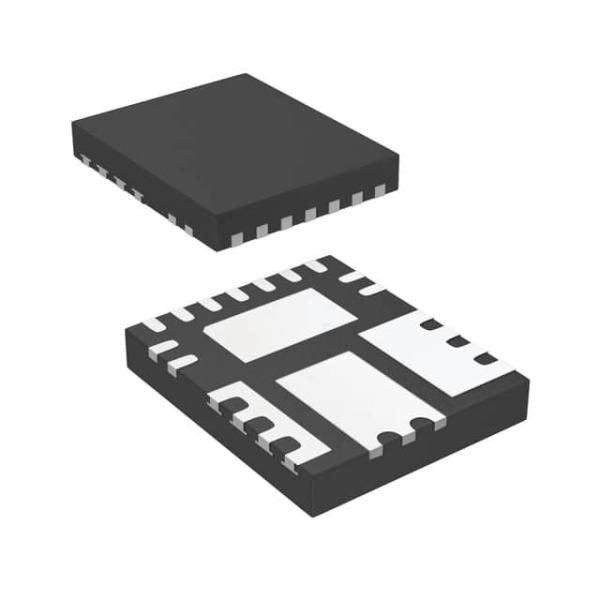

IR3801AMTRPBF IC REG BUCK ADJUSTABLE 9A PQFN Infineon Technologies Images
