NM93C06M8 IC EEPROM 256BIT MICROWIRE 8SOIC onsemi

Name: NM93C06M8 IC EEPROM 256BIT MICROWIRE 8SOIC onsemi
Brand: onsemi
Price: 1 USD

Brand Name : onsemi

Model Number : NM93C06M8

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Non-Volatile

Memory Format : EEPROM

Technology : EEPROM

Memory Size : 256bit

Memory Organization : 16 x 16

Memory Interface : Microwire

Clock Frequency : 1 MHz

Write Cycle Time - Word, Page : 10ms

Access Time : -

Voltage - Supply : 4.5V ~ 5.5V

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SOIC

Contact Now

Product Details

General Description

NM93C06 is a 256-bit CMOS non-volatile EEPROM organized as 16 x 16-bit array. This device features MICROWIRE interface which is a 4-wire serial bus with chipselect (CS), clock (SK), data input (DI) and data output (DO) signals. This interface is compatible to many of standard Microcontrollers and Microprocessors. There are 7 instructions implemented on the NM93C06 for various Read, Write, Erase, and Write Enable/Disable operations. This device is fabricated using Fairchild Semiconductor floating-gate CMOS process for high reliability, high endurance and low power consumption.

Features

■ Wide VCC 2.7V - 5.5V
■ Typical active current of 200µA
10µA standby current typical
1µA standby current typical (L)
0.1µA standby current typical (LZ)
■ No Erase instruction required before Write instruction
■ Self timed write cycle
■ Device status during programming cycles
■ 40 year data retention
■ Endurance: 1,000,000 data changes
■ Packages available: 8-pin SO, 8-pin DIP, 8-pin TSSOP

Specifications

Attribute	Attribute Value
Manufacturer	National Semiconductor
Product Category	IC Chips
Categories	Memory
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part-Status	Obsolete
Memory-Type	Non-Volatile
Memory-Format	EEPROM
Technology	EEPROM
Memory-Size	256b (16 x 16)
Clock-Frequency	1MHz
Write-Cycle-Time-Word-Page	10ms
Memory-Interface	SPI
Voltage-Supply	4.5 V ~ 5.5 V
Operating-Temperature	0°C ~ 70°C (TA)
Mounting-Type	Surface Mount
Package-Case	8-SOIC (0.154", 3.90mm Width)
Supplier-Device-Package	8-SOIC
Base-Part-Number	NM93C06

Descriptions

EEPROM Memory IC 256b (16 x 16) SPI 1MHz 8-SOIC

China NM93C06M8 IC EEPROM 256BIT MICROWIRE 8SOIC onsemi wholesale

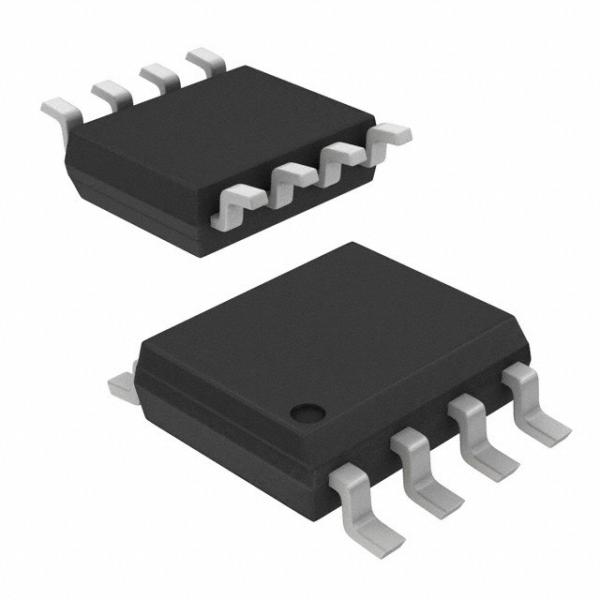

NM93C06M8 IC EEPROM 256BIT MICROWIRE 8SOIC onsemi Images
