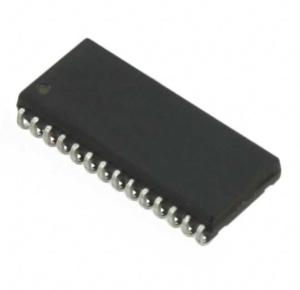

71256SA25YG IC SRAM 256KBIT PARALLEL 28SOJ Renesas Electronics America Inc

Name: 71256SA25YG IC SRAM 256KBIT PARALLEL 28SOJ Renesas Electronics America Inc
Brand: Renesas Electronics America Inc
Price: 1 USD

Brand Name : Renesas Electronics America Inc

Model Number : 71256SA25YG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Asynchronous

Memory Size : 256Kbit

Memory Organization : 32K x 8

Memory Interface : Parallel

Clock Frequency : -

Write Cycle Time - Word, Page : 25ns

Access Time : 25 ns

Voltage - Supply : 4.5V ~ 5.5V

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 28-BSOJ (0.300", 7.62mm Width)

Supplier Device Package : 28-SOJ

Contact Now

Product Details

Description

The IDT71256SA is a 262,144-bit high-speed Static RAM organized as 32K x 8. It is fabricated using IDT’s high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with
innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs.

Features

◆ 32K x 8 advanced high-speed CMOS static RAM
◆ Commercial (0° to 70°C) and Industrial (-40° to 85°C) temperature options
◆ Equal access and cycle times
– Commercial and Industrial: 12/15/20/25ns
◆ One Chip Select plus one Output Enable pin
◆ Bidirectional data inputs and outputs directly TTL-compatible
◆ Low power consumption via chip deselect
◆ Commercial product available in 28-pin 300-mil Plastic DIP, 300 mil Plastic SOJ and TSOP packages
◆ Industrial product available in 28-pin 300 mil Plastic SOJ and TSOP packages

Specifications

Attribute	Attribute Value
Manufacturer	Integrated Circuit Systems
Product Category	Memory ICs
Series	71256SA
Type	Asynchronous
Packaging	Tube Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	28-BSOJ (.300", 7.62mm Width)
Operating-Temperature	0°C ~ 70°C (TA)
Interface	Parallel
Voltage-Supply	4.5 V ~ 5.5 V
Supplier-Device-Package	28-SOJ
Memory Capacity	256K (32K x 8)
Memory-Type	SRAM - Asynchronous
Speed	25ns
Access-Time	25 ns
Format-Memory	RAM
Maximum Operating Temperature	+ 70 C
Operating temperature range	0 C
Interface-Type	Parallel
Organization	32 k x 8
Supply-Current-Max	145 mA
Part-#-Aliases	71256SA IDT71256SA25YG
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	4.5 V
Package-Case	SOJ-28

Functional compatible componentForm,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
QS83280-25V Memory	Cache Tag SRAM, 32KX8, 25ns, CMOS, PDSO28,	Quality Semiconductor Inc	71256SA25YG vs QS83280-25V
71256TTSA25YG Memory	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, ROHS COMPLIANT, PLASTIC, SOJ-28	Integrated Device Technology Inc	71256SA25YG vs 71256TTSA25YG
71256SA25YG8 Memory	SOJ-28, Reel	Integrated Device Technology Inc	71256SA25YG vs 71256SA25YG8
71256SA25Y Memory	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Integrated Device Technology Inc	71256SA25YG vs 71256SA25Y

Descriptions

SRAM - Asynchronous Memory IC 256Kb (32K x 8) Parallel 25ns 28-SOJ

SRAM 32Kx8 ASYNCHRONOUS 5.0V STATIC RAM
