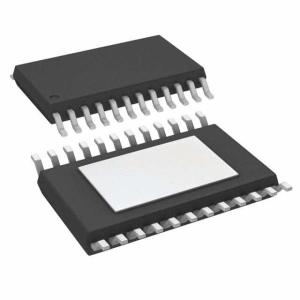

TPS70402PWP IC REG LIN POS ADJ 24HTSSOP Texas Instruments

Name: TPS70402PWP IC REG LIN POS ADJ 24HTSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : TPS70402PWP

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Adjustable

Number of Regulators : 2

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 1.22V

Voltage - Output (Max) : 5.5V

Voltage Dropout (Max) : 0.25V @ 1A, -

Current - Output : 1A, 2A

Current - Quiescent (Iq) : 250 µA

Current - Supply (Max) : -

PSRR : 65dB (1kHz), 60dB (1kHz)

Control Features : Enable, Power Good, Reset, Sequencing

Protection Features : Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 24-PowerTSSOP (0.173", 4.40mm Width)

Supplier Device Package : 24-HTSSOP

Contact Now

Product Details

DESCRIPTION

Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.
Packaged either in TO-220AC, ISOWATT220AC, TO-220FPAC or D2PAK, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

FEATURES AND BENEFITS
■ Very small conduction losses
■ Negligible switching losses
■ Extremely fast switching
■ Insulated package: ISOWATT220AC, TO-220FPAC
Insulating voltage = 2000V DC
Capacitance = 12pF

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
Series	TPS70402
Packaging	Tube Alternate Packaging
Unit-Weight	0.003460 oz
Mounting-Style	SMD/SMT
Package-Case	24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Operating-Temperature	-40°C ~ 125°C
Mounting-Type	Surface Mount
Output-Type	Adjustable
Supplier-Device-Package	24-HTSSOP
Voltage-Input	2.7 V ~ 6 V
Number-of-Outputs	2 Output
Current-Output	1A, 2A
Voltage-Output	1.22 V ~ 5.5 V
Regulator-Topology	Positive Adjustable
Voltage-Dropout-Typical	0.16V @ 1A
Number-of-Regulators	2 Regulators
Current-Limit-Min	-
Pd-Power-Dissipation	4.58 W
Maximum Operating Temperature	+ 125 C
Operating temperature range	- 40 C
Output-Voltage	1.22 V to 5.5 V
Input-Voltage-MAX	6 V
Output-Current	1 A
Input-Voltage-MIN	+ 2.7 V
Load-Regulation	1 mV
Voltage-Regulation-Accuracy	2 %
Package-Case	HTSSOP-24
Ib-Input-Bias-Current	185 uA
Quiescent-Current	250 uA
Reference-Voltage	1.22 V
Dropout-Voltage	0.16 V at 1 A
Dropout-Voltage-Max	250 mV at 1 A
Line-Regulation	0.01 % / V

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
TPS70302PWPR Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Integrated SVS 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70302PWPR
TPS70402PWPR Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Power Good 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70402PWPR
TPS70302PWPG4 Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Integrated SVS 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70302PWPG4
TPS70302PWPRG4 Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Integrated SVS 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70302PWPRG4
TPS70402PWPRG4 Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Power Good 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70402PWPRG4
TPS70302PWP Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Integrated SVS 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70302PWP
TPS70402PWPG4 Power Circuits	Dual-Output, 2-A/1-A Low Dropout Voltage Regulators with Power Good 24-HTSSOP -40 to 125	Texas Instruments	TPS70402PWP vs TPS70402PWPG4

Descriptions

LDO Regulator Pos 1.22V to 5.5V 1A/2A 24-Pin HTSSOP EP Tube

LDO Voltage Regulators Dual-Output 1A/2A
